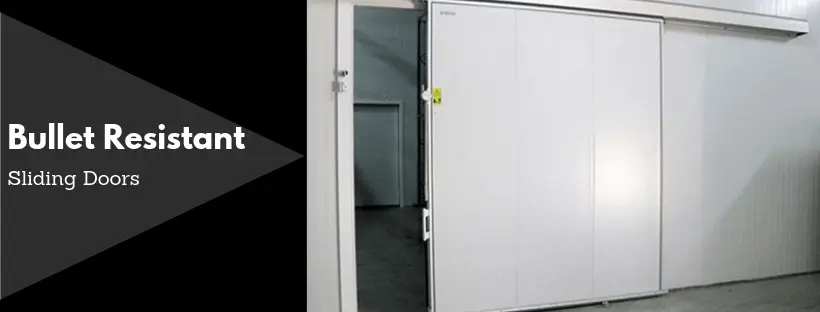

AMBICO bulletproof steel sliding doors are secure from ballistic attack yet have the appearance of traditional standard steel sliding doors.
Our sliding ballistic doors are available to meet UL 752 levels 1 through 10 and are furnished with all sliding door hardware components and an electric operator when required.
The option to add vision glass lite(s) is available and includes all glass and glazing. Custom sizes to suit unique project demands are readily available.
UL Level One standard to protect against medium power small arms (Super 38 Automatic). UL Level Two standard to protect against high power small arms (.357 Magnum Revolver). UL Level Three standard to protect against super power small arms (.44 Magnum Revolver).
UL Level Four standard to protect against high power rifle attack (30-06 Rifle) where anticipated threat levels are extremely high. UL Levels 5 through 10 to protect against military assault weapons and munitions.
Bullet Resistant Sliding Door |
SPEC.
View PDF
|
Download DOC
CAD. View PDF | Download DWG |
- Can a bullet resistant door stop any type of bullet fired at it?
- Bullet resistant doors are subject to the criteria established in the standard UL752. Ten distinct levels of bullet resistance are established ranging from a small arms 9mm handgun (Level 1) to a 7.62 high powered military assault rifle (Level 10). When selecting an AMBICO bullet resistant door and frame do so with reference to the anticipated.
- Do I need special hardware with a bullet resistant door?
- AMBICO includes all track, track brackets, hangers, guides, and pulls. Electric operators with safety devices and actuators are available. Valances are available.
- What type of facilities are ideal for bullet resistant doors?
- Government buildings, army bases, bomb shelters, security barriers, laboratories or test cells, and anywhere else requiring high security.
- Can AMBICO bullet resistant steel doors comply with LEED standards?
- Click here to view AMBICO LEED credits.
- What sizes are available for bullet resistant steel doors?
- Sliding doors are available in excess of 10’-0” x 16’-0” leaves, consult factory for details.
Bullet resistant doors are subject to the criteria established in the document UL 752. Eight distinct “levels” of bullet resistance are established ranging from a small .38 handgun (Level I) through to a 762 high powered military assault rifle (Level VIII). When selecting an AMBICO bullet resistant door and frame do so with reference to the anticipated threat – please refer to Table One. If you are uncertain about your choice ask one of our professional salespeople for advice or e-mail us with your query.
Rating | Ammunition | Grain | G | Minimum Velocity | Number of shots | |
FPS | M/S | |||||
Level 1 | 9mm Full metal copper jacket lead core | 124 | 8 | 1,175 | 358 | 3 |
Level 2 | .357 Magnum jacketed lead soft point | 158 | 10.2 | 1,250 | 381 | 3 |
Level 3 | .44 Magnum lead semi-wadcutter gas checked | 240 | 15.6 | 2,350 | 411 | 3 |
Level 4 | .30 caliber Rifle lead core soft point | 180 | 11.7 | 2,540 | 774 | 1 |
Level 5 | 7.62 mm Rifle lead core full metal jacket, military ball | 150 | 9.7 | 2,750 | 838 | 1 |
Level 6 | 9mm full metal copper jacket with lead cor | 124 | 8 | 1,400 | 427 | 5 |
Level 7 | 5.56 mm Rifle full metal copper jacket with lead core | 55 | 3.56 | 3,080 | 939 | 5 |
Level 8 | 7.62 mm Rifle lead core full metal copper jacket, military ball | 150 | 9.7 | 2,750 | 838 | 5 |
g – gram
fps – feet per second
m/s – meters per second
