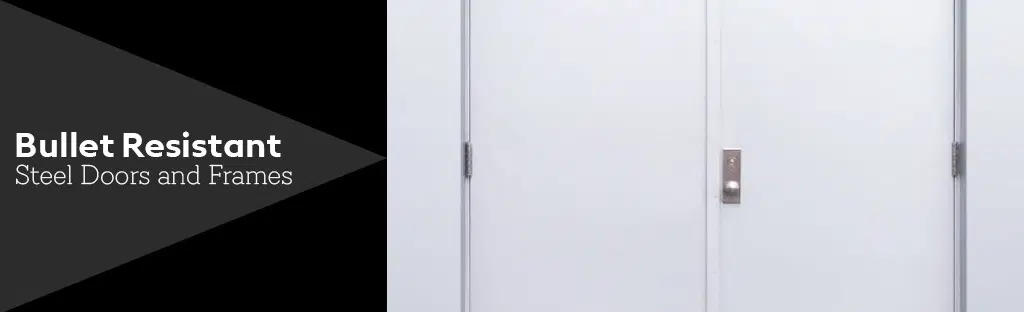

AMBICO bulletproof steel doors and frames are secure from ballistic attack, yet have the appearance of standard hollow metal products. Our complete range of bulletproof doors are readily available and can be furnished with factory-installed bullet resistant glazing.
Stock bullet resistant steel doors and frames are ready for immediate shipment.
UL Level One standard to protect against medium power small arms (Super 38 Automatic). UL Level Two standard to protect against high power small arms (.357 Magnum Revolver). UL Level Three standard to protect against superpower small arms (.44 Magnum Revolver).
UL Level Four standard to protect against high power rifle attack (30-06 Rifle) where anticipated threat levels are extremely high. UL Levels Five through Eight to protect against military assault weapons using armour-piercing ballistics.
UL Level Nine to protect against armor piercing .30 caliber rifles or other high-powered hunting and sporting rifles. UL Level Ten to protect against high powered military weapons such as a .50 caliber rifles.
BR Level 1 to 3 Door Fire Rated |
SPEC.
View PDF
|
Download DOC
CAD. View PDF | Download DWG BIM. View Library |
BR Level 1 to 3 Door Non-Fire Rated |
SPEC.
View PDF
|
Download DOC
CAD. View PDF | Download DWG |
BR Level 4 to 6 Door Fire Rated |
SPEC.
View PDF
|
Download DOC
CAD. View PDF | Download DWG |
BR Level 5, 7 & 8 Door Fire Rated |
SPEC.
View PDF
|
Download DOC
CAD. View PDF | Download DWG |
BR Level 4 to 8 Door Non-Fire Rated |
SPEC.
View PDF
|
Download DOC
CAD. View PDF | Download DWG |
BR Level 1 to 8 Door With Vision Lite |
SPEC.
View PDF
|
Download DOC
CAD. View PDF | Download DWG BIM. View Library |
BR Level 9 to 10 Door Non-Fire Rated |
SPEC.
View PDF
|
Download DOC
CAD. View PDF | Download DWG BIM. View Library |
BR Level 1 to 3 Frame Non-Fire Rated |
SPEC.
View PDF
|
Download DOC
CAD. View PDF | Download DWG |
BR Level 4 to 8 Frame Non-Fire Rated |
SPEC.
View PDF
|
Download DOC
CAD. View PDF | Download DWG |
BR Level 9 to 10 Frame Non-Fire Rated |
SPEC.
View PDF
|
Download DOC
CAD. View PDF | Download DWG |
- Can a bullet resistant door stop any type of bullet fired at it?
- Bullet resistant doors are subject to the criteria established in the standard UL752. Ten distinct levels of bullet resistance are established ranging from a small arms 9mm handgun (Level 1) to a 7.62 high powered military assault rifle (Level 10). When selecting an AMBICO bullet resistant door and frame do so with reference to the anticipated threat – please refer to the UL752 Standards Chart. If you are uncertain about your choice, ask one of our professional salespeople for advice or e-mail us with your query.
- Do I need special hardware with a bullet resistant door?
- AMBICO bullet resistant doors levels 1 through 8 weigh between seven to twenty-one pounds per square foot and operate with readily available heavyweight builders hardware. Levels 9 and 10 weigh between twenty-six and thirty-two pounds per square foot and require special heavy duty hinges that will be supplied by AMBICO.
- Can bullet resistant doors and frames be supplied with bullet resistant glazing?
- Yes – bullet resistant glass polycarbonate is available and may be factory pre-installed. The bullet resistant capacity of the door, frame and glass must be complementary.
- What type of facilities are ideal for bullet resistant doors?
- Government buildings, army bases, banks, bomb shelters, security barriers, schools and universities, hospital emergency areas, casinos, and anywhere else requiring high security.
- Are AMBICO Bullet Resistant Steel doors available with vision lights?
- AMBICO Bullet Resistant Steel doors are available with vision light kit and glass factory installed.
- Can AMBICO Bullet Resistant Steel doors comply with LEED standards?
- AMBICO offers Environmental Product Declaration (EPD).
- Click here to view AMBICO LEED credits.
- What sizes are available for Bullet Resistant Steel doors?
- Man doors are available up to 4’-0” x 10’-0” leaves. Oversized bullet resistant doors are engineered, consult factory for details
Rating | Ammunition | Grain | G | Minimum Velocity | Number of shots | |
FPS | M/S | |||||
Level 1 | 9mm Full metal copper jacket lead core | 124 | 8 | 1,175 | 358 | 3 |
Level 2 | .357 Magnum jacketed lead soft point | 158 | 10.2 | 1,250 | 381 | 3 |
Level 3 | .44 Magnum lead semi-wadcutter gas checked | 240 | 15.6 | 1,350 | 411 | 3 |
Level 4 | .30 caliber Rifle lead core soft point | 180 | 11.7 | 2,540 | 774 | 1 |
Level 5 | 7.62 mm Rifle lead core full metal jacket, military ball | 150 | 9.7 | 2,750 | 838 | 1 |
Level 6 | 9mm full metal copper jacket with lead cor | 124 | 8 | 1,400 | 427 | 5 |
Level 7 | 5.56 mm Rifle full metal copper jacket with lead core | 55 | 3.56 | 3,080 | 939 | 5 |
Level 8 | 7.62 mm Rifle lead core full metal copper jacket, military ball | 150 | 9.7 | 2,750 | 838 | 5 |
Level 9 | Armor piercing .30 caliber Rifle steel core lead point filler full metal jacket | 437 | 10.8 | 2,715 | 828 | 1 |
Level 10 | .50 Caliber rifle lead core full metal copper jacket military ball | 709.5 | 45.9 | 2,810 | 856 | 1 |
g – gram
fps – feet per second
m/s – meters per second
